Modula Lift ML 50D Vertical Lift Module

We now have a Modula Lift ML 50D available for sale. The Vertical Lift Module has been regularly serviced by the manufacturer since installation and is in excellent condition.

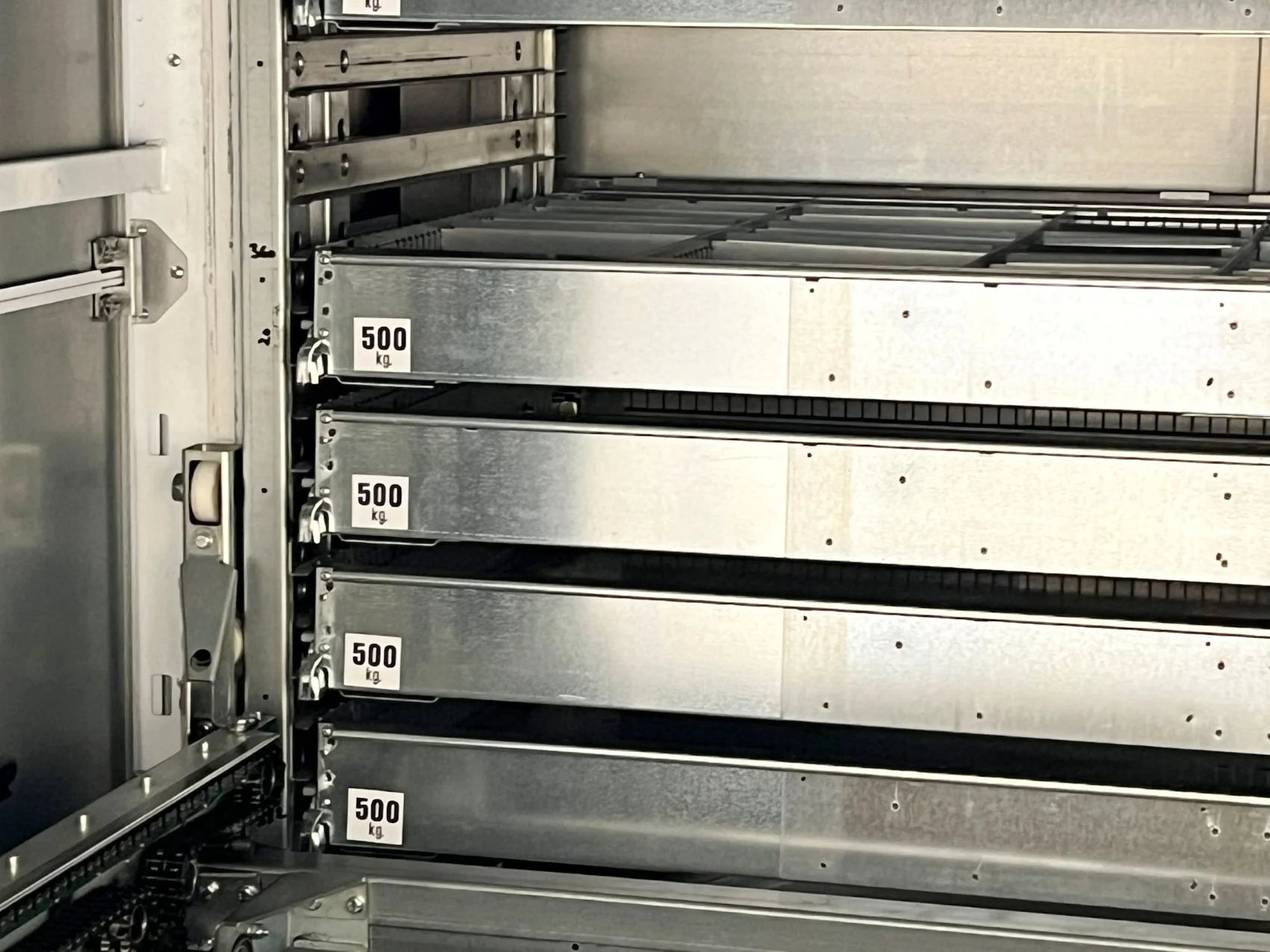

The trays have a width of 4,100 mm and a depth of 860 mm, providing a storage area of 3.53 m² per tray. With 50 trays, this results in a total storage area of 176.5 m². The load capacity per tray is up to 500 kg, giving a total storage capacity of 25,000 kg for all 50 trays.

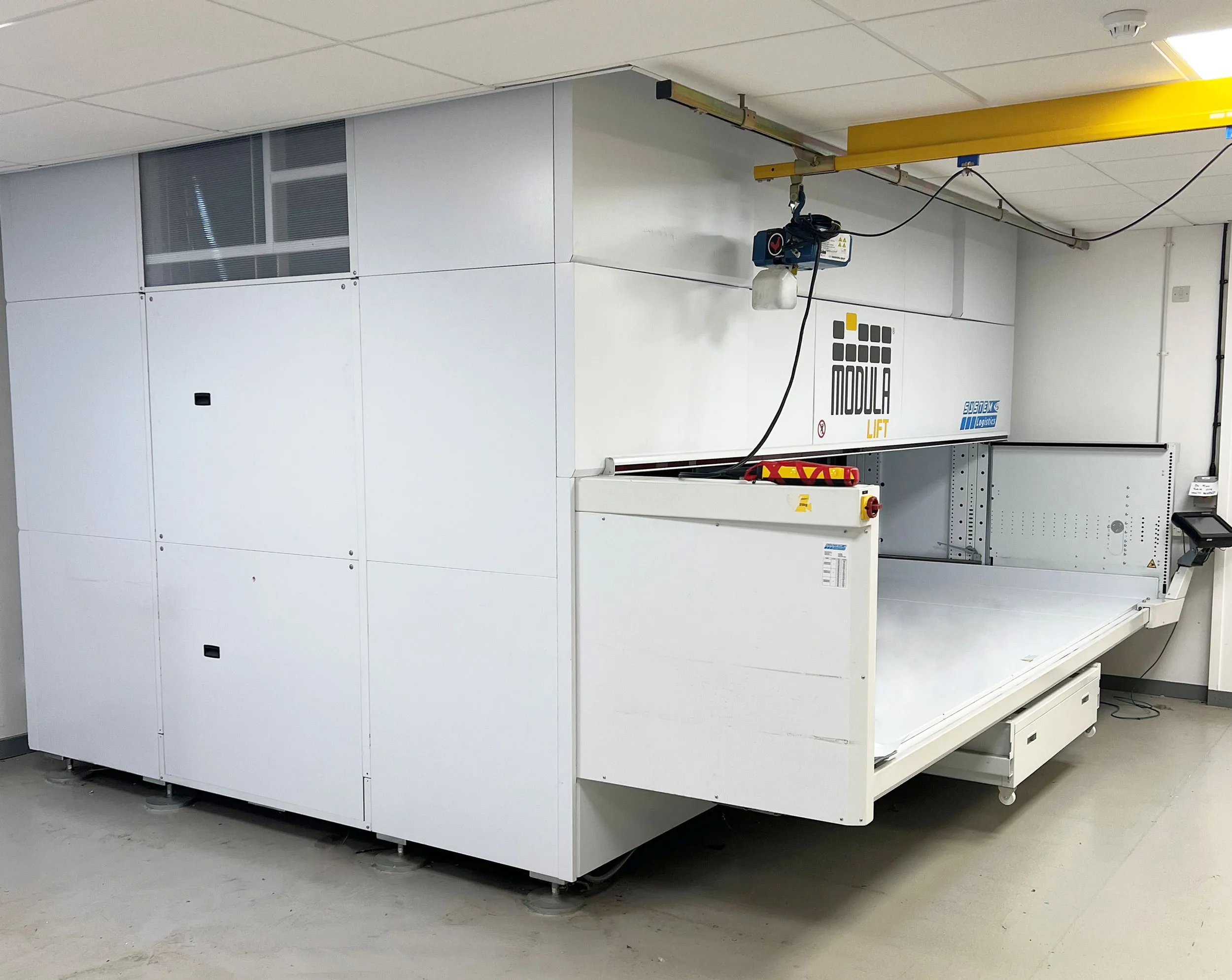

The Vertical Lift Module has been placed in a protected location thanks to a mezzanine, which has helped maintain the cladding and exterior in excellent condition.

Available in April 2025.
Shipping and installation not included.

Overview

Year:
2012
Dimensions:
Height: 6.2 m / Width: 4.5 m / Depth: 4.1 m

Technical information

Manufacturer:
Modula
Manufacturing year:
2012
Model:
Modula Lift ML 50D
Height:
6 200 mm
Width vertical lift module / tray:
4 500 mm / 4 100 mm
Depth vertical lift module / tray:
3 058 mm / 860 mm
Number of trays / Tray height:
Approx. 50 trays / 120 mm high edge
Maximum weight per tray:
500 kg
Electronics:
400 V, 20 A
