8 units Kardex Shuttle XP 500

We can now offer the opportunity to purchase 8 top modern Kardex Shuttle XP 500 Vertical Lift Modules. With these lifts you have the opportunity to create a modern and efficient picking solution; perfect for transaction-intensive businesses such as e-commerce, retail or small goods wholesale.

These units are equipped with 70 trays per vertical lift which provides a storage surface of 173,5 m² on a floor surface of merely 9,9 m². All units combined offers 1 388 m² storage on a floor space of 120 m² including a picking corridor between the machines.

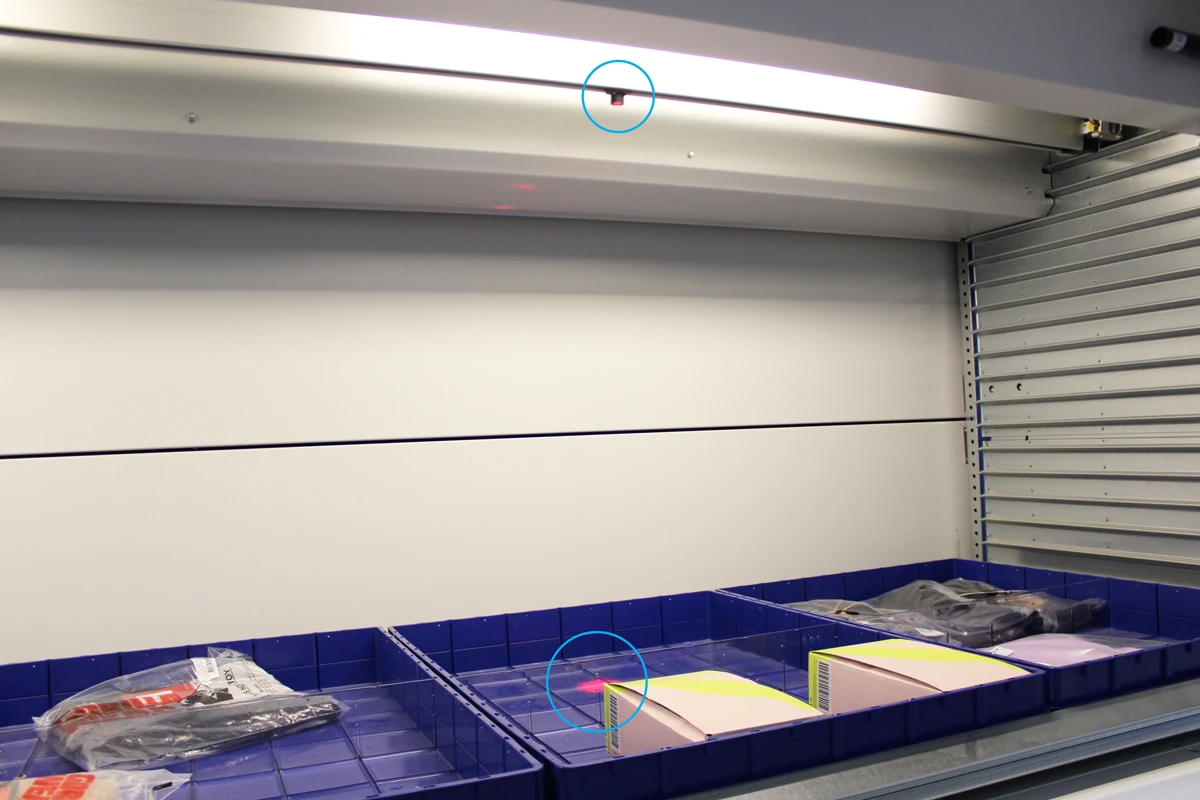

The storage lifts are also equipped with a LED pointer that indicates the correct picking location with a light beam, reducing potential picking errors. See an example picture in the picture gallery.

The units are sold separately but we recommend purchasing them in groups of e.g. 2, 4, 6 or 8 in order to maximize the potential to create an efficient picking solution.

Serviced since installation. Shipping and installation are not included in the price. The crates in the pictures are not included.

The Vertical Lifts are available for assembly from fall 2023.

Overview

Year:
2019 - in use 2020
Dimensions:
Height: 8.05 m / Width: 3.38 m / Depth: 2.92 m

Technical information

Manufacturer:
Kardex Remstar
Manufacturing year:
2019 - in use 2020
Model:
SHUTTLE-XP-500-3050x813
Height:
8 050 mm
Width vertical lift module / tray:
3 380 mm / 3 050 mm
Depth vertical lift module / tray:
2 921 mm / 813 mm
Number of trays:
70 per vertical lift
Maximum weight per tray:
210 kg
