4 units Kardex Megamat RS 350 vertical carousels
1 of 4 sold. 3 left for delivery in September.

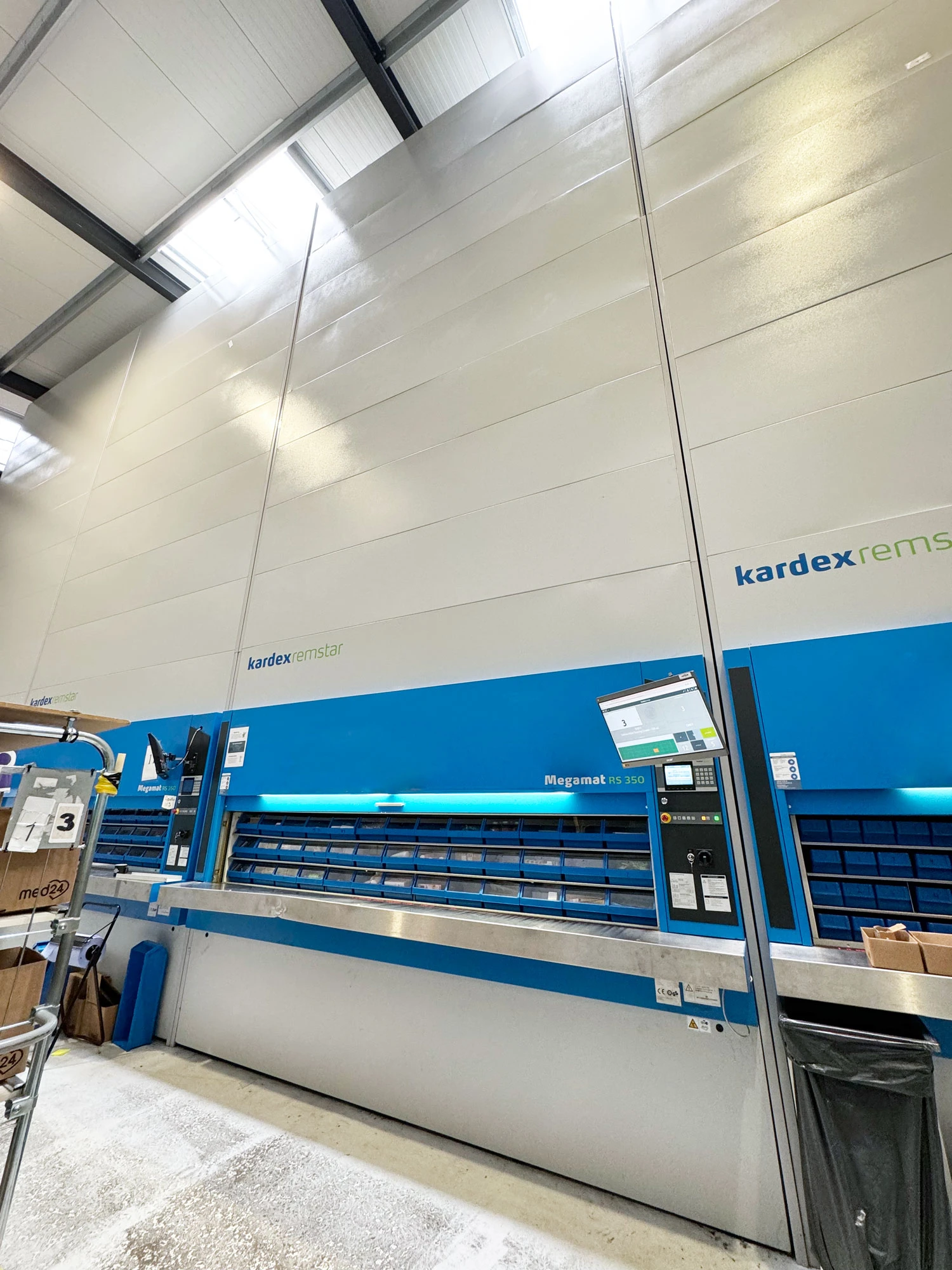

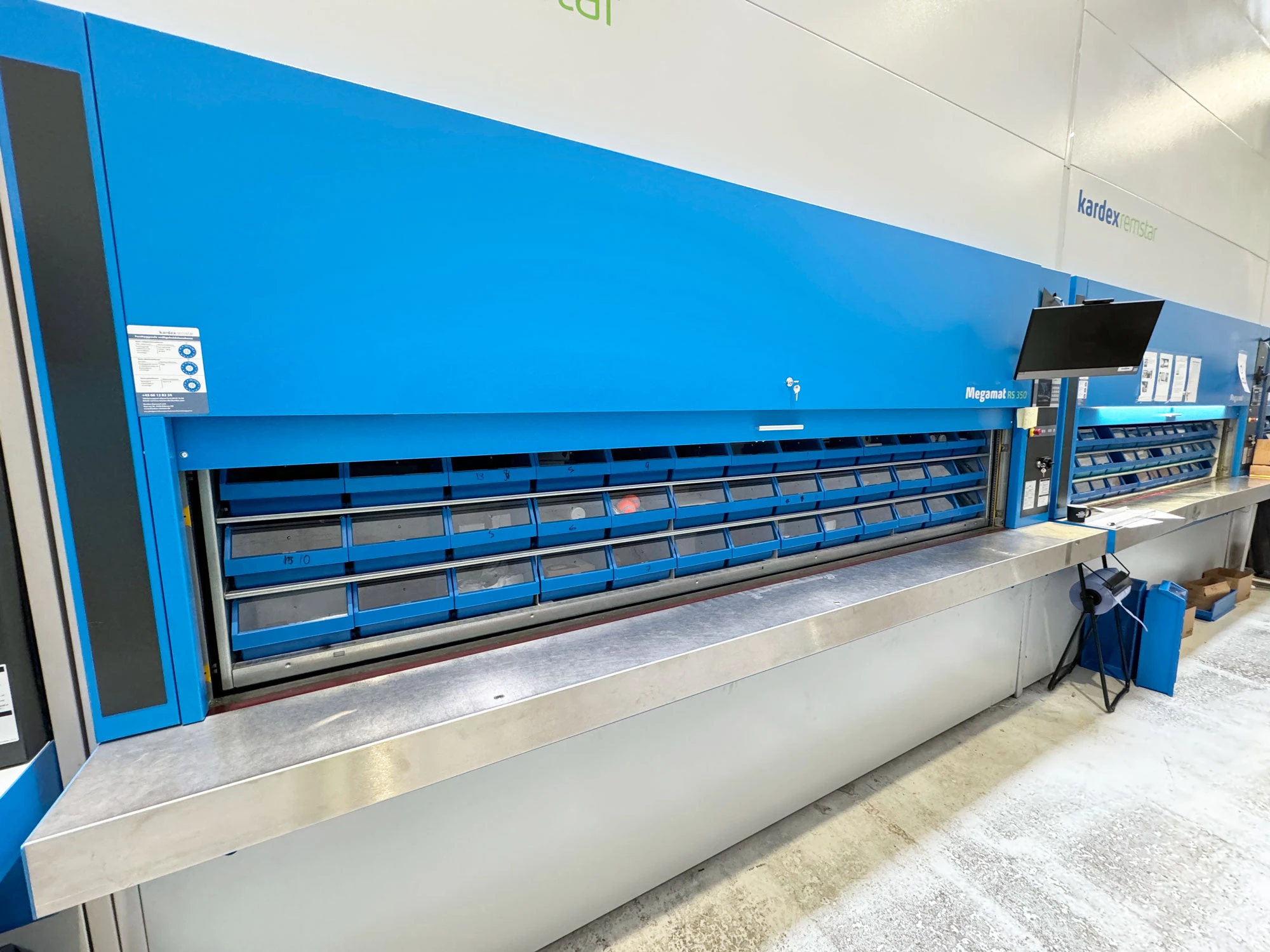

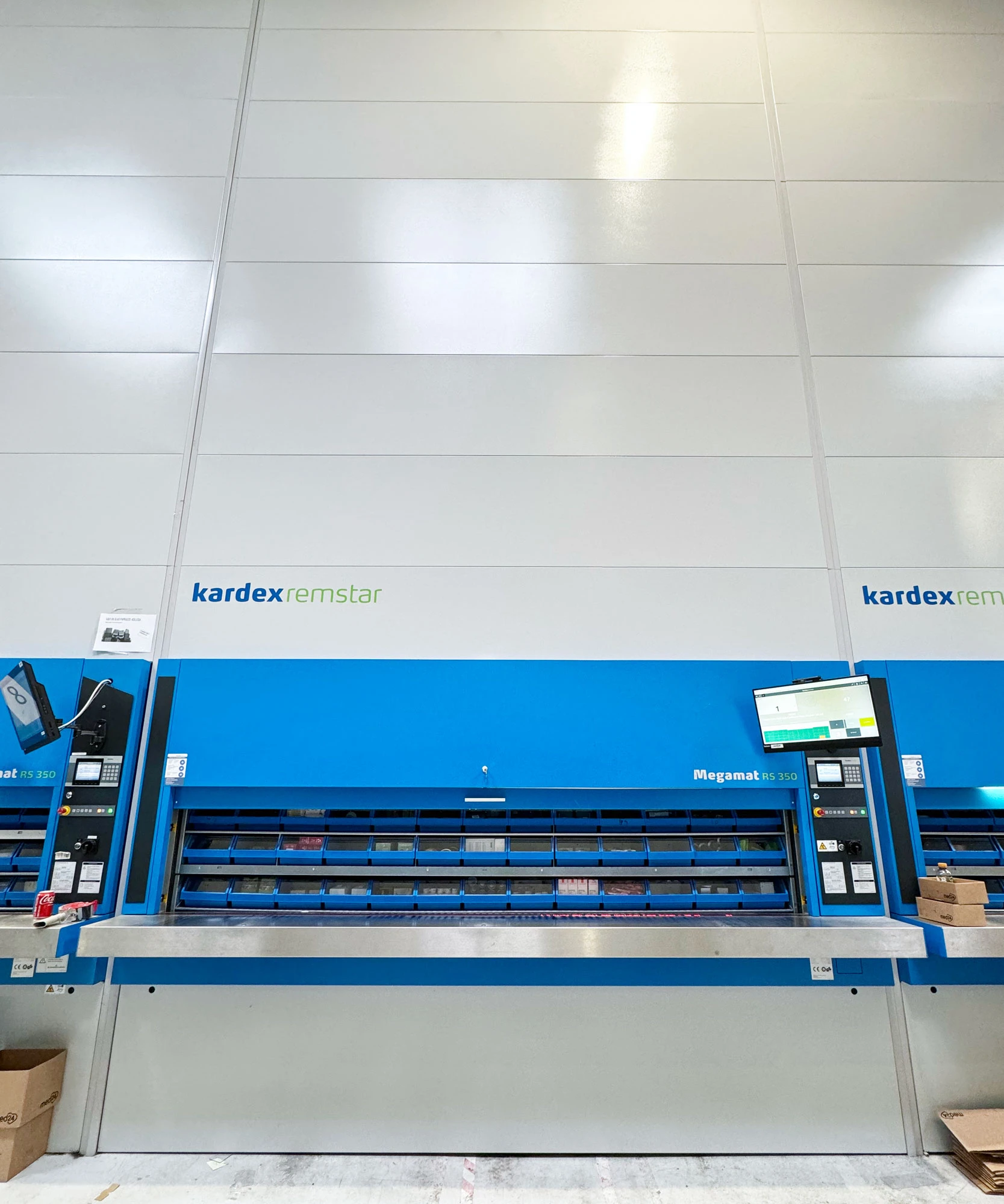

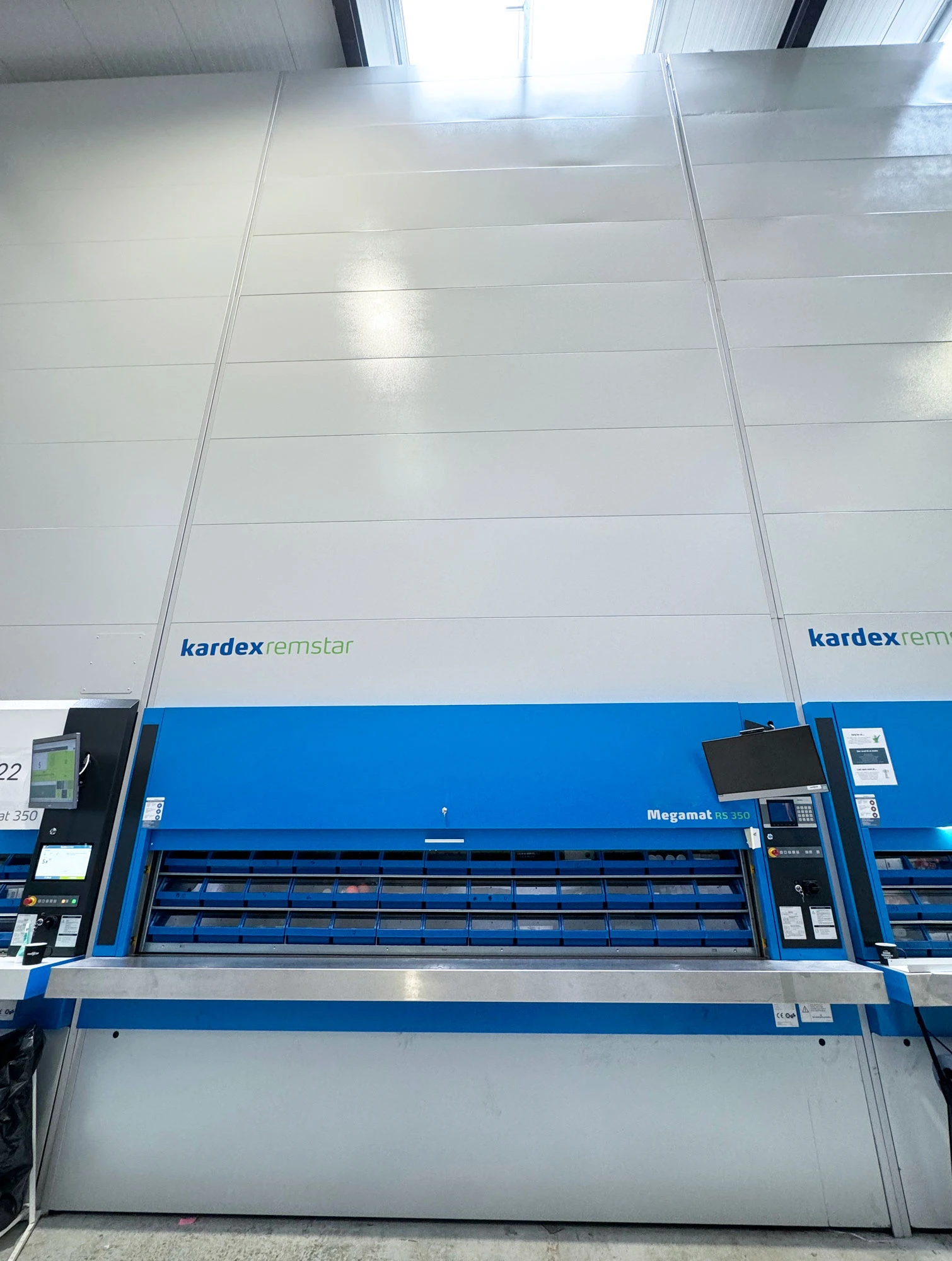

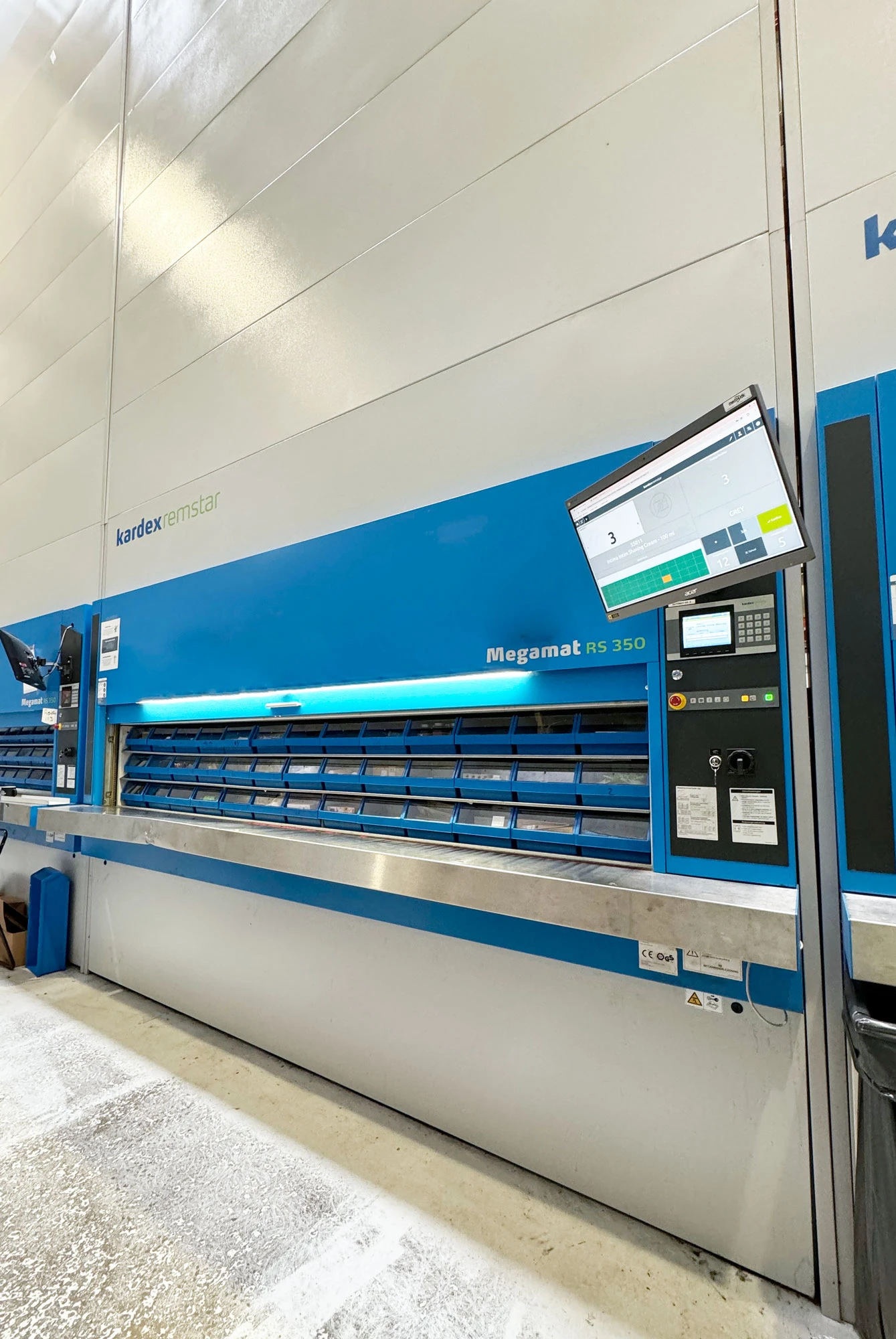

4 Kardex Megamat RS 350 vertical carousels in good used condition and heights, these are machines that offer really compact storage. The vertical carousels is available in 3 different heights:
2 units - 8 710 mm
1 unit - 7 695 mm
1 unit - 7 635 mm
The carriers of the vertical carousels racks are 3 050 mm wide and of the deepest model, 628 mm, which means that they can store a lot of goods per carrier. Each carrier is then equipped with 3 shelves, giving the machines the following total capacity:
2 units - 29 carriers, 87 shelves, total loadable 116 shelves = total storage area 222 m² on just over 6 m² floor space.
2 units - 25 carriers, 75 shelves, total loadable 100 shelves = total storage area 192 m² on just over 6 m² of floor space.

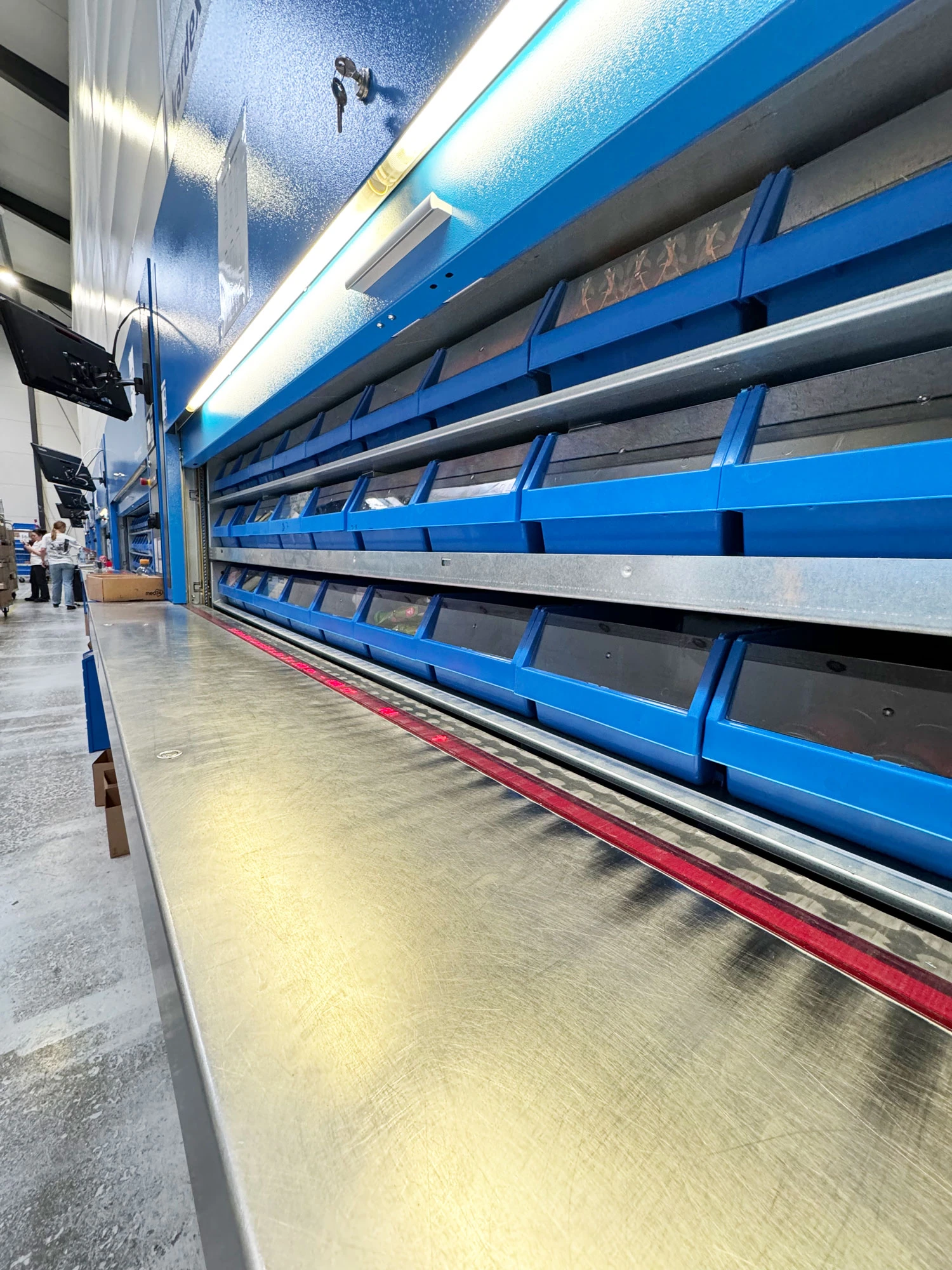

The units are equipped with the optional “Matrix strip”, an LED strip in the opening that can indicate the picking location horizontally and display e.g. article information. This functionality requires integration with ERP/WMS.
The vertical carousels have been serviced since installation and had relevant wear parts replaced.
Available from October.
Shipping and installation is not included.
4 Kardex Megamat RS 350 vertical carousels in good used condition and heights, these are machines that offer really compact storage. The vertical carousels is available in 3 different heights:
2 units - 8 710 mm
1 unit - 7 695 mm
1 unit - 7 635 mm
The carriers of the vertical carousels racks are 3 050 mm wide and of the deepest model, 628 mm, which means that they can store a lot of goods per carrier. Each carrier is then equipped with 3 shelves, giving the machines the following total capacity:
2 units - 29 carriers, 87 shelves, total loadable 116 shelves = total storage area 222 m² on just over 6 m² floor space.
2 units - 25 carriers, 75 shelves, total loadable 100 shelves = total storage area 192 m² on just over 6 m² of floor space.
The units are equipped with the optional “Matrix strip”, an LED strip in the opening that can indicate the picking location horizontally and display e.g. article information. This functionality requires integration with ERP/WMS.
The vertical carousels have been serviced since installation and had relevant wear parts replaced.
Available from October.
Shipping and installation is not included.
Overview
Year:
2016 - 2021
Dimensions:
Height: 7.63-8.71 m / Width: 3.68 m / Depth: 1.67 m
Technical information
Manufacturer:
Kardex Remstar
Manufacturing year:
1 unit 2016, 1 unit 2020, 2 units 2021
Model:
MEG RS 350.1.3050.5.533.25/29
Height vertical carousel / carrier:
7 635 mm - 8 710 mm / Free height of carrier approx 470 mm
Width vertical carousel / carrier:
3 675 mm / 3 050 mm
Depth vertical carousel / carrier:
1 671 mm / 628 mm
Number of carriers and shelves:
25 or 29 / 100 or 116
Maximum weight per tray:
228 - 350 kg depending on the number of shelves installed
Electronics:
3/N/PE 400V, 16 A
Price:
28 600 EUR / unit
