2 units Weland Compact Twin G2 3660 Vertical Lift Modules

Now we can offer 2 Weland Compact Twin 3660 from 2018 in excellent condition.
These "3660" model have extra wide trays, so despite a relatively low height (6.6 metres), they offer very high storage capacity in a small space.

The trays measure 3665 mm in width and 820 mm in depth, which corresponds to just over 3 m² of storage space per tray. With around 34 trays per Vertical Lift Module, this means that each machine has a storage capacity of 102 m², while occupying only 12.4 m² of floor space per machine.

The storage machines are Weland's Twin model, the fastest Vertical Lift Modules on the market. Thanks to the Twin model, the lift can handle two trays at the same time, resulting in more and faster tray changes. The machines have been operated sparingly since installation.

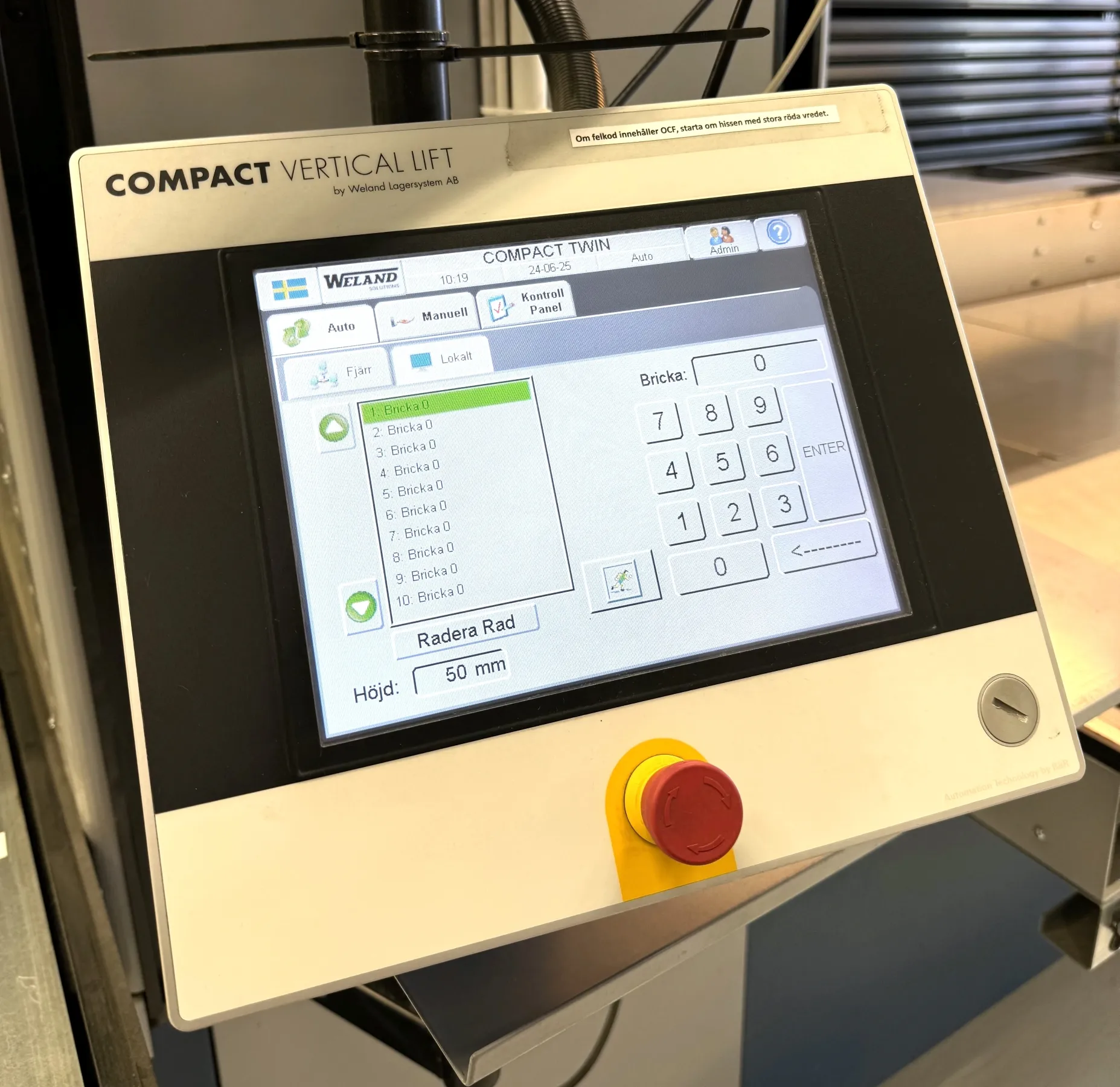

The lifts are also equipped with the optional LED strip and foot pedal. The LED list indicates to the picker where and how many items the operator should pick, while the foot pedal enables a smooth confirmation of picking.

The Vertical Lift Modules will be available from October 2024.
Shipping and installation is not included.

Overview

Year:
2018
Dimensions:
Height: 6.6 m / Width: 4.14 m / Depth: 3 m

Technical information

Manufacturer:
Weland Solutions
Manufacturing year:
2018
Model:
Weland Compact Twin 3660
Height:
6 595 mm
Width vertical lift module / tray:
4 137 mm / 3 665 mm
Depth vertical lift module / tray:
2 998 mm / 820 mm
Number of trays:
Approx. 34 trays per lift
Maximum weight per tray:
500 kg
Electronics:
400 V, 20 A
