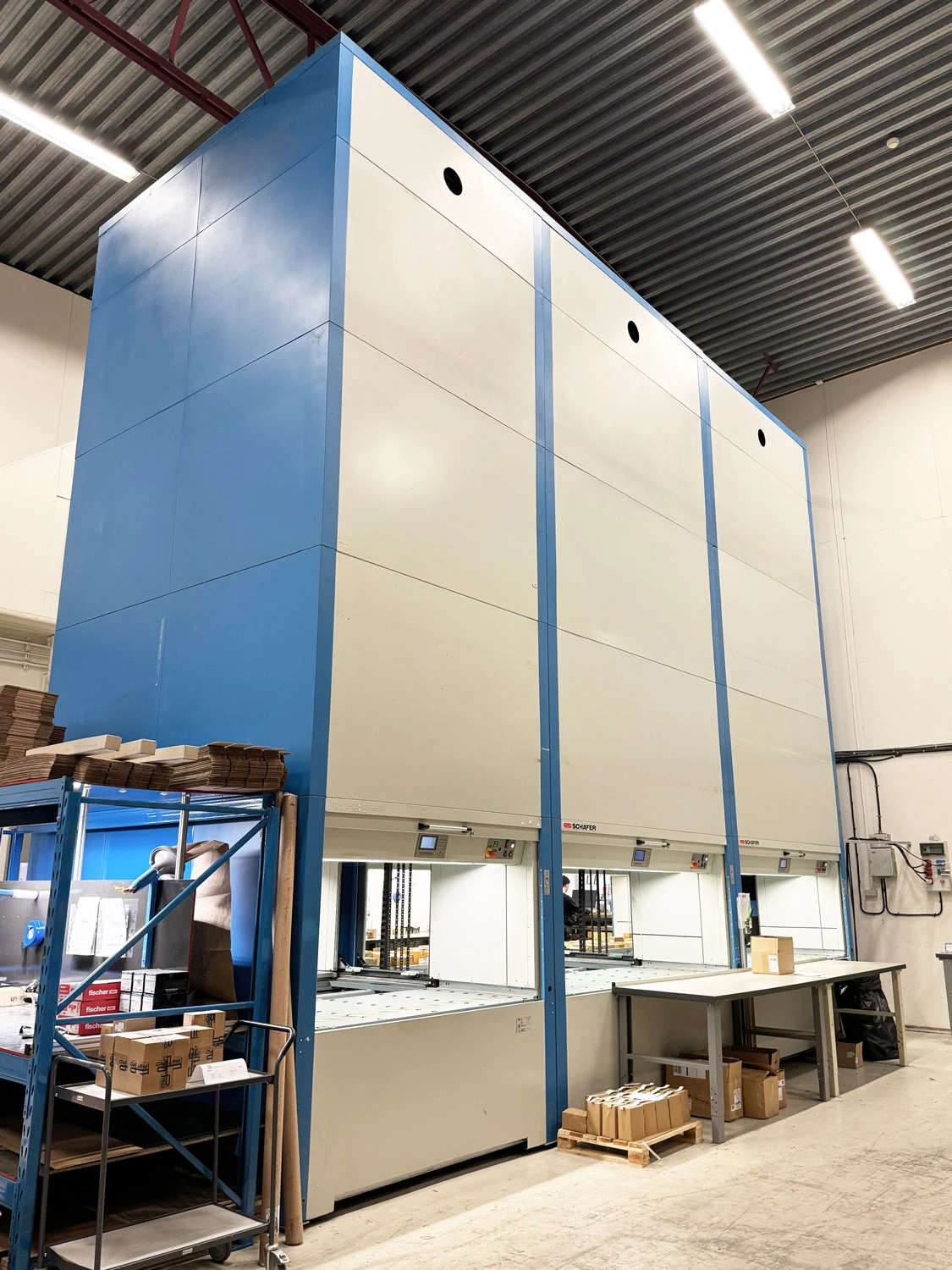

2 units Kardex Shuttle 250 NT 2450×863 Vertical Lift Modules

2 Kardex Remstar Shuttle NT 2450 from 2001 in good condition. The manufacturer still provides full support for the Shuttle NT model, which means you can be assured that the Vertical Lift Modules will be able to meet your needs for a long time to come. This includes access to spare parts, service and upgrade kits.

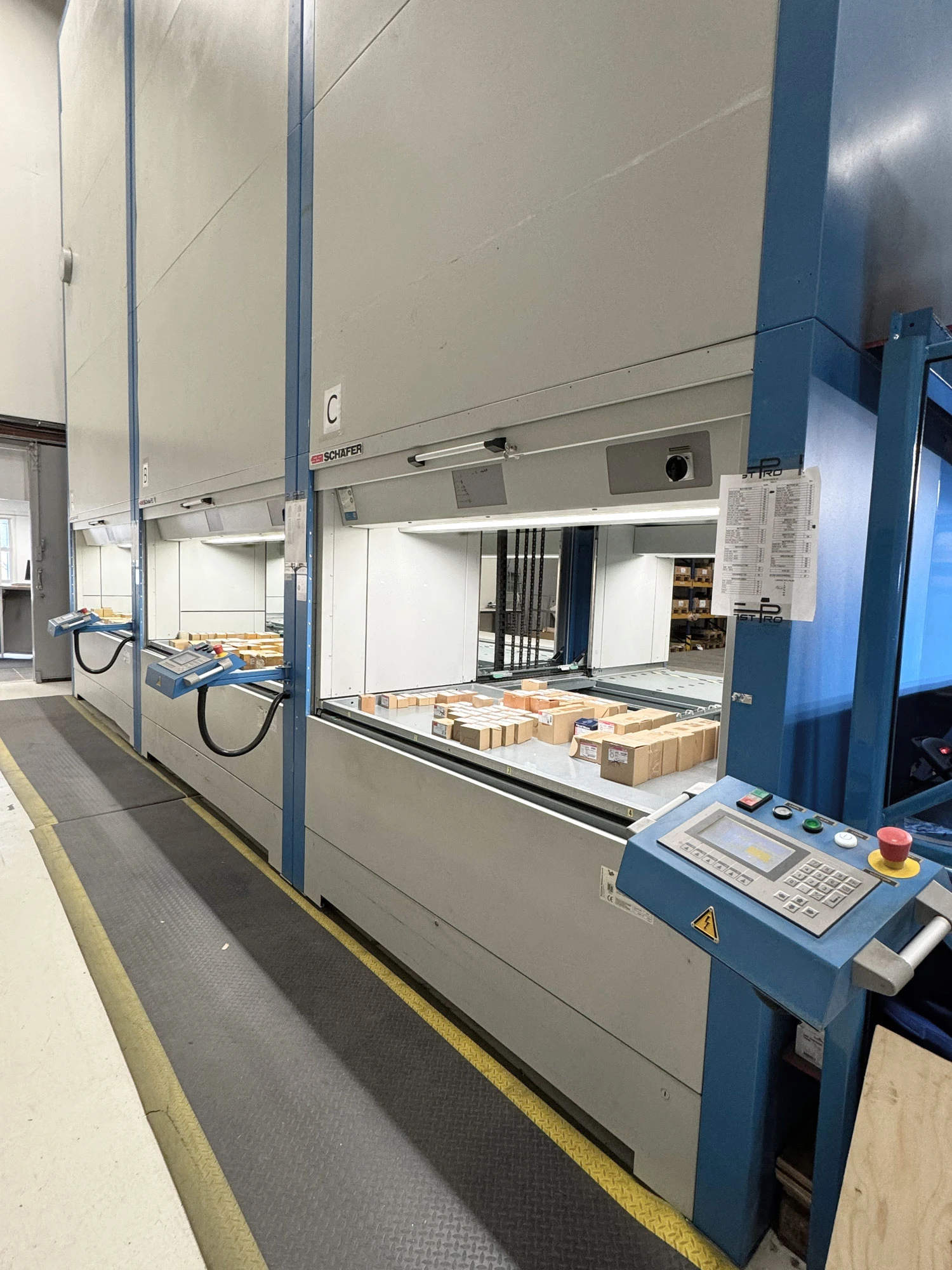

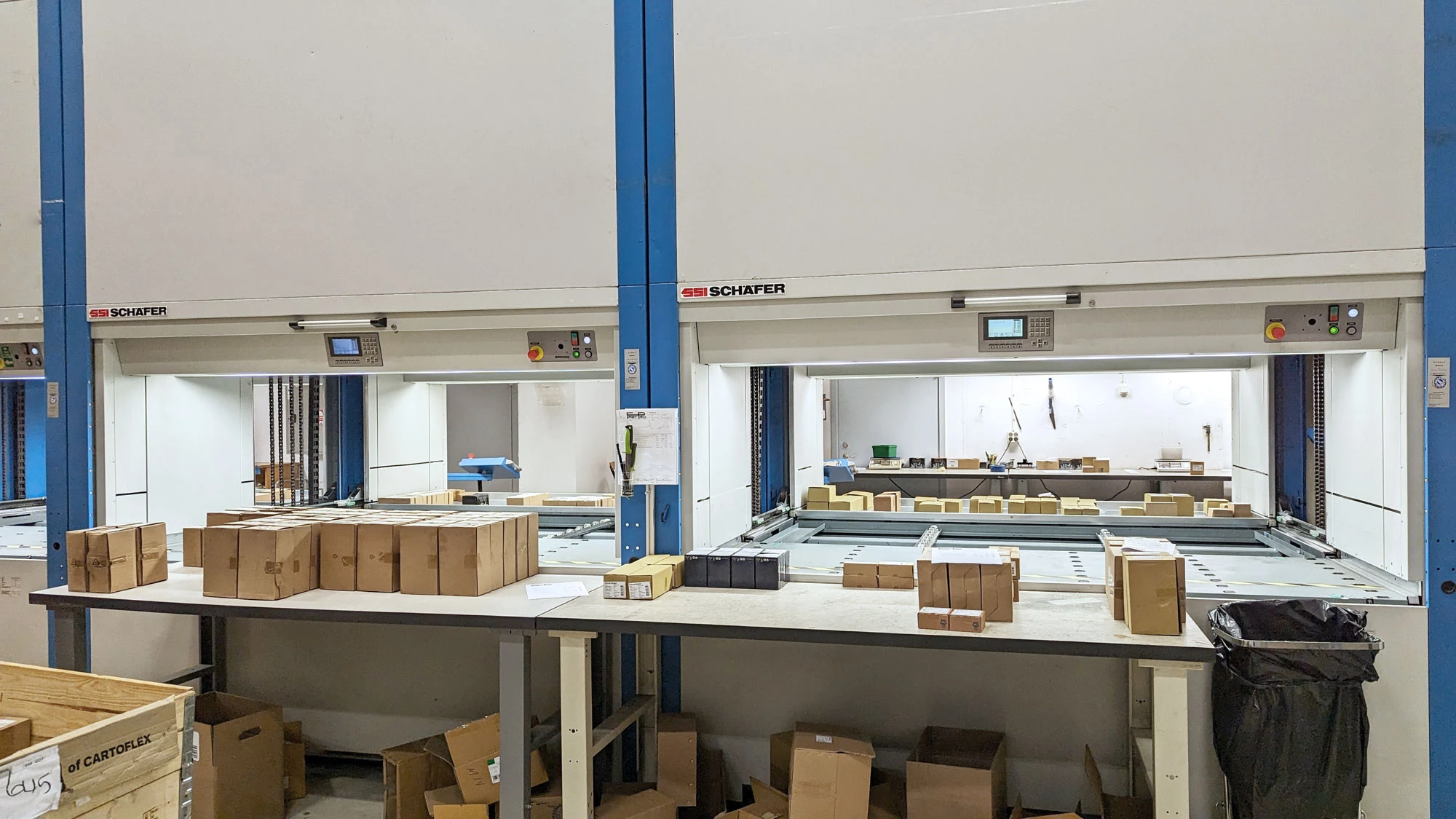

In its current design, the Vertical Lift Modules has double openings, which makes it possible to store and pick goods from both the front and the back of the machine. Should you wish to install the machines with one opening, it is possible to easily close one opening.

The design of these Vertical Lift Modules allows the height of 6,600 mm to be easily adjusted to the heights:
6 100 mm
4 900 mm
3 500 mm

The Vertical Lift Modules has approximately 40 shelves where each shelf can store 260kg. With a shelf width of 2,450 mm, these machines also work well for storing heavier goods, maximizing storage capacity and improving efficiency in your warehouse.

Available from mid August, 2024.
Shipping and assembly not included

Overview

Year:
2001
Dimensions:
Height: flexible up to 6.6 m / Width: 2.78 m / Depth: 2.98 m

Technical information

Manufacturer:
Kardex Remstar
Model:
SHUTTLE-250-2450x863-NT
Manufacturing year:
2001
Height:
6 600 mm
Width vertical lift module / tray:
2 780 mm / 2450 mm
Depth vertical lift module / tray:
2 986 mm / 863 mm
Number of trays:
Approx 40 trays per lift
Maximum weight per tray:
260 kg
Electronics:
3/N/PE 400V, 16 A
