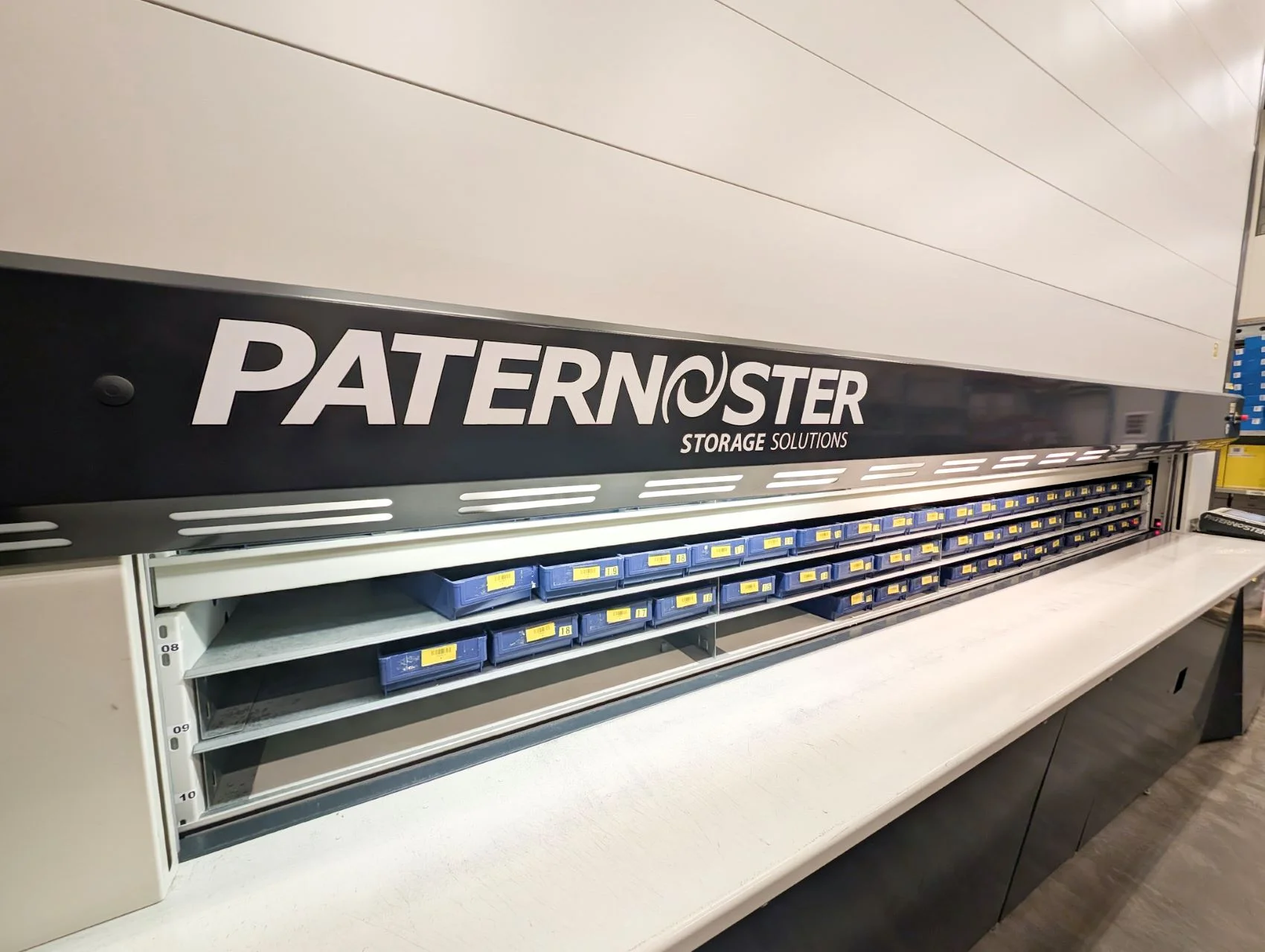

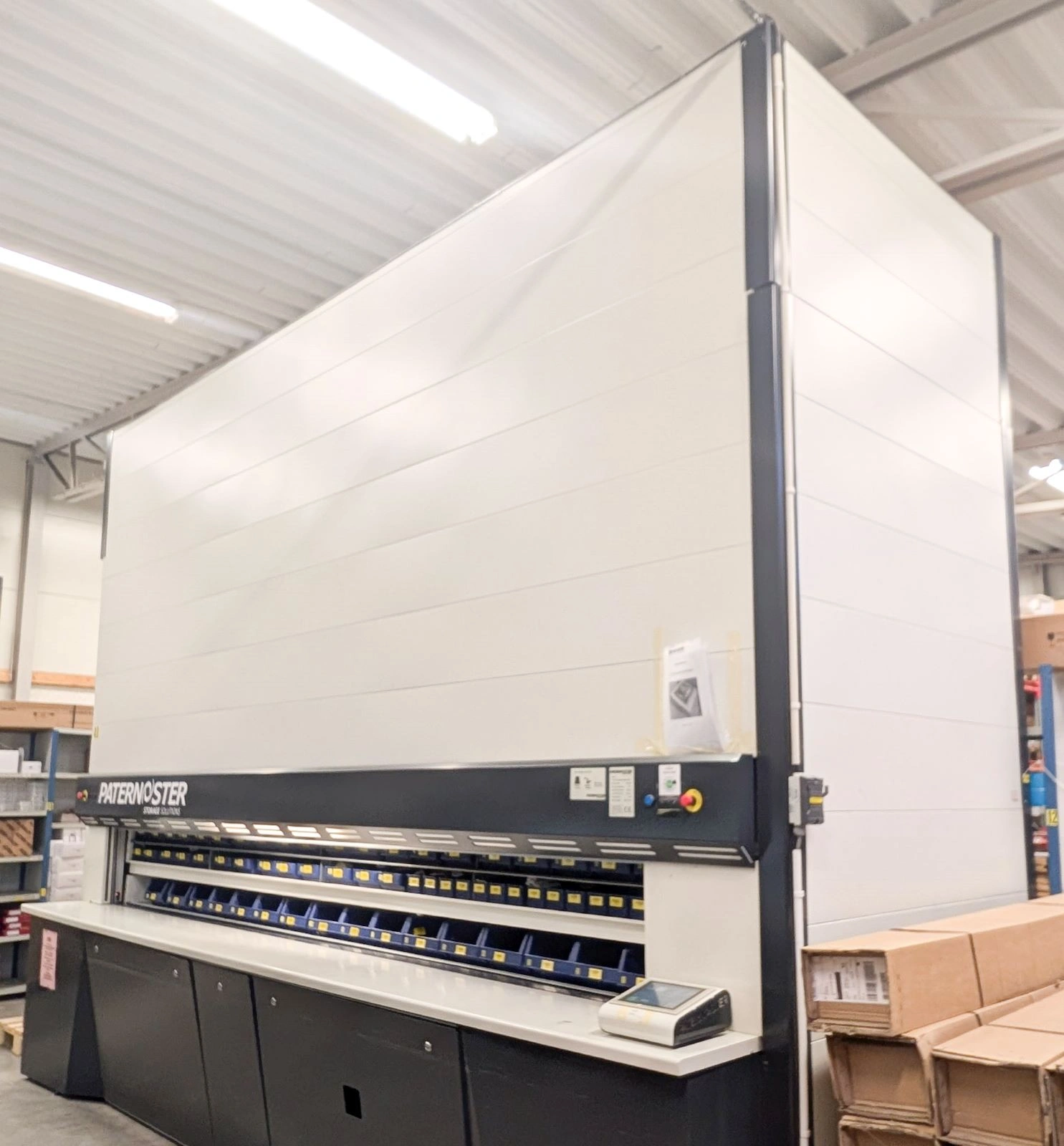

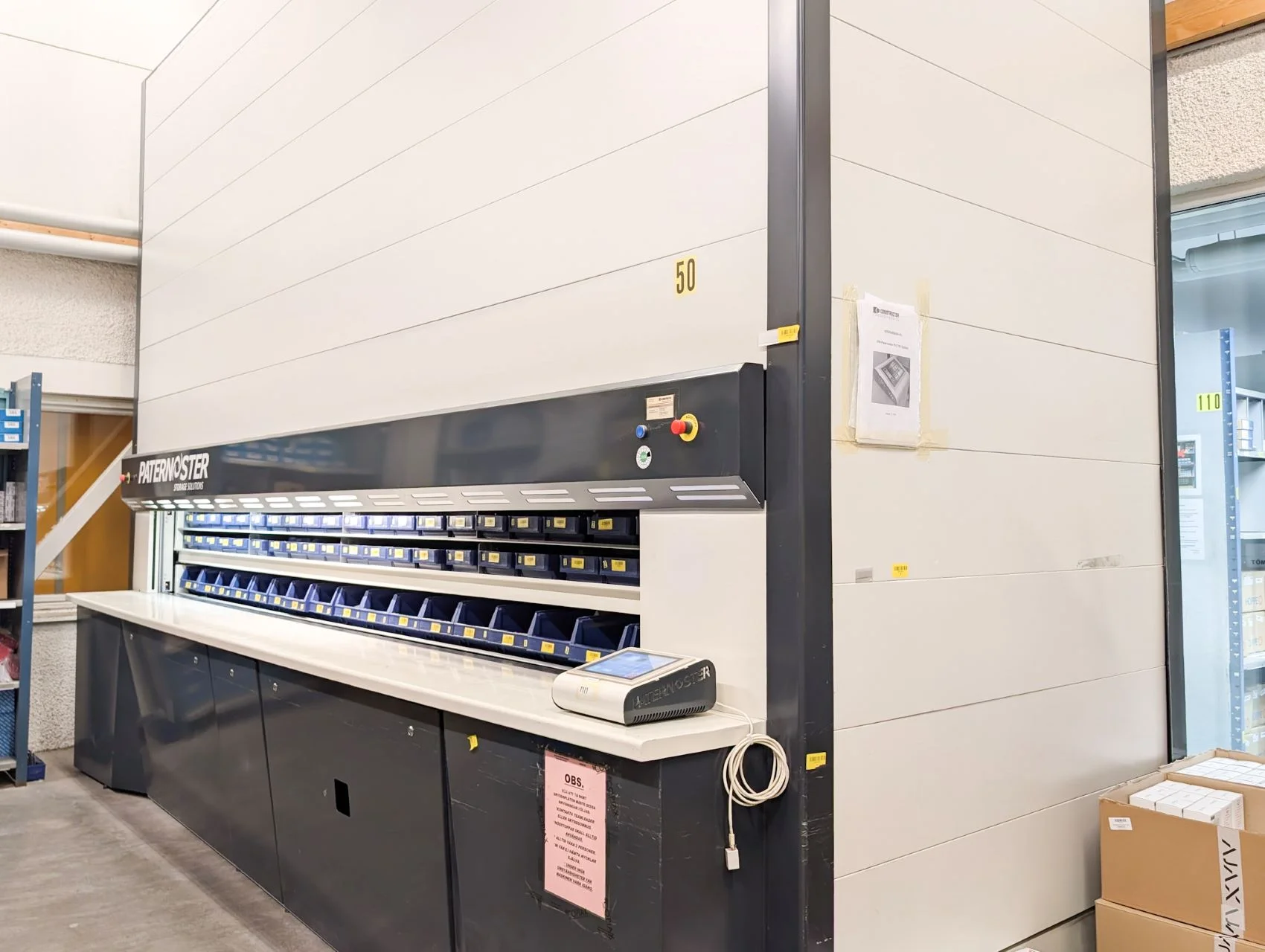

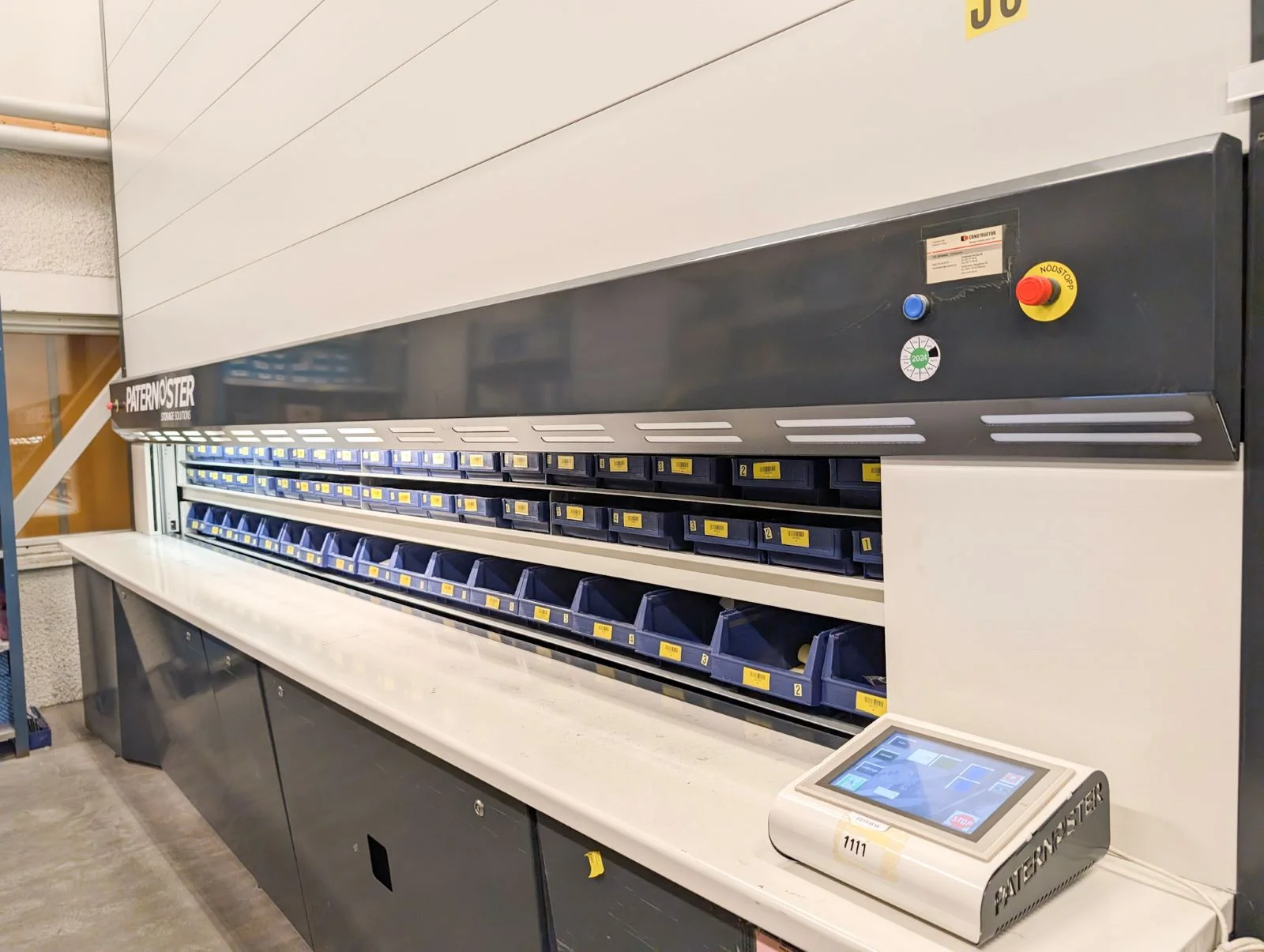

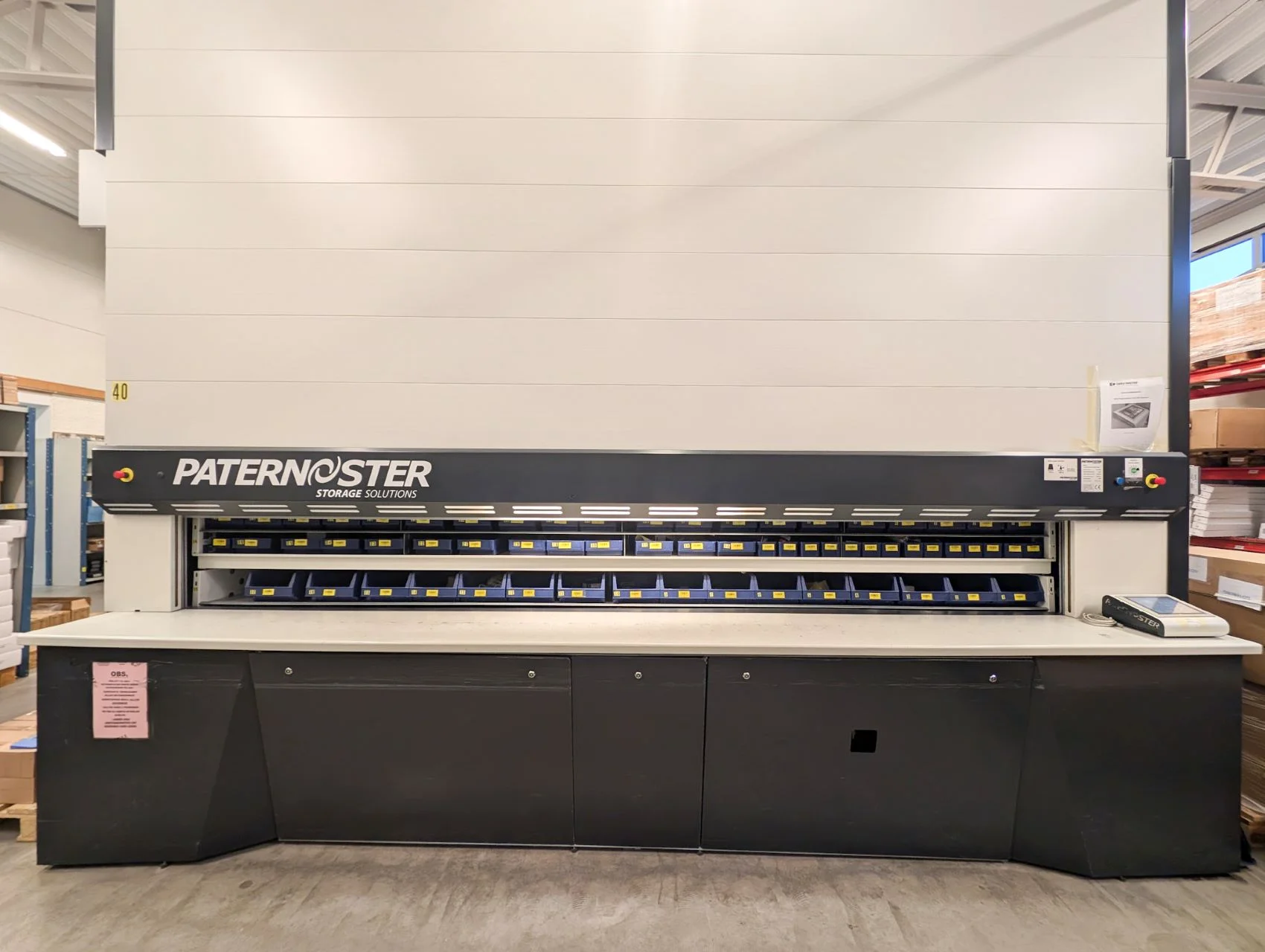

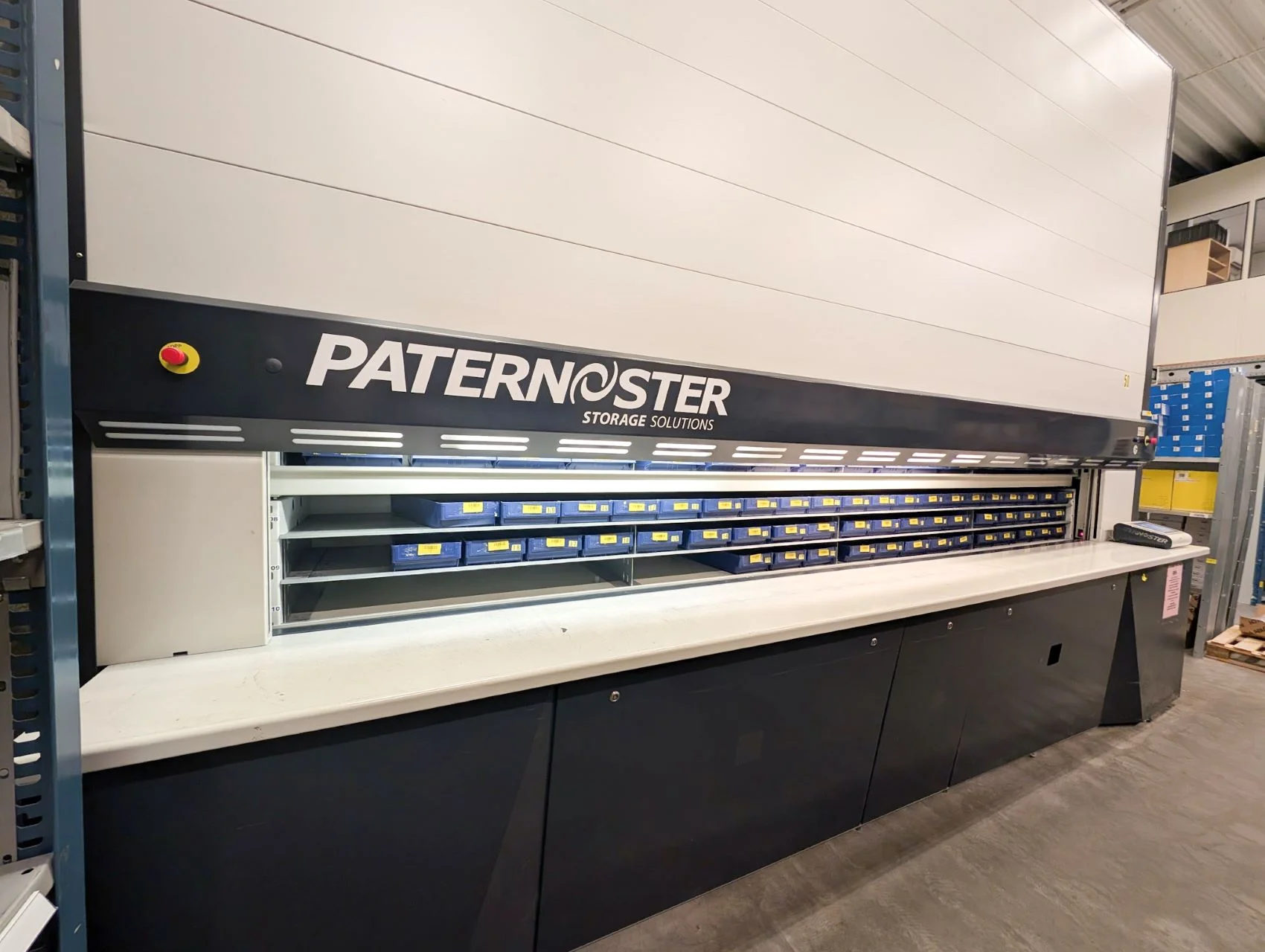

2 units Constructor IPN Vertical Carousels
We now have 2 Constructor IPN vertical carousels for sale. The machines are in excellent condition and have a low height of 3,840 mm, making them ideal for businesses with lower ceiling heights looking to store goods efficiently.

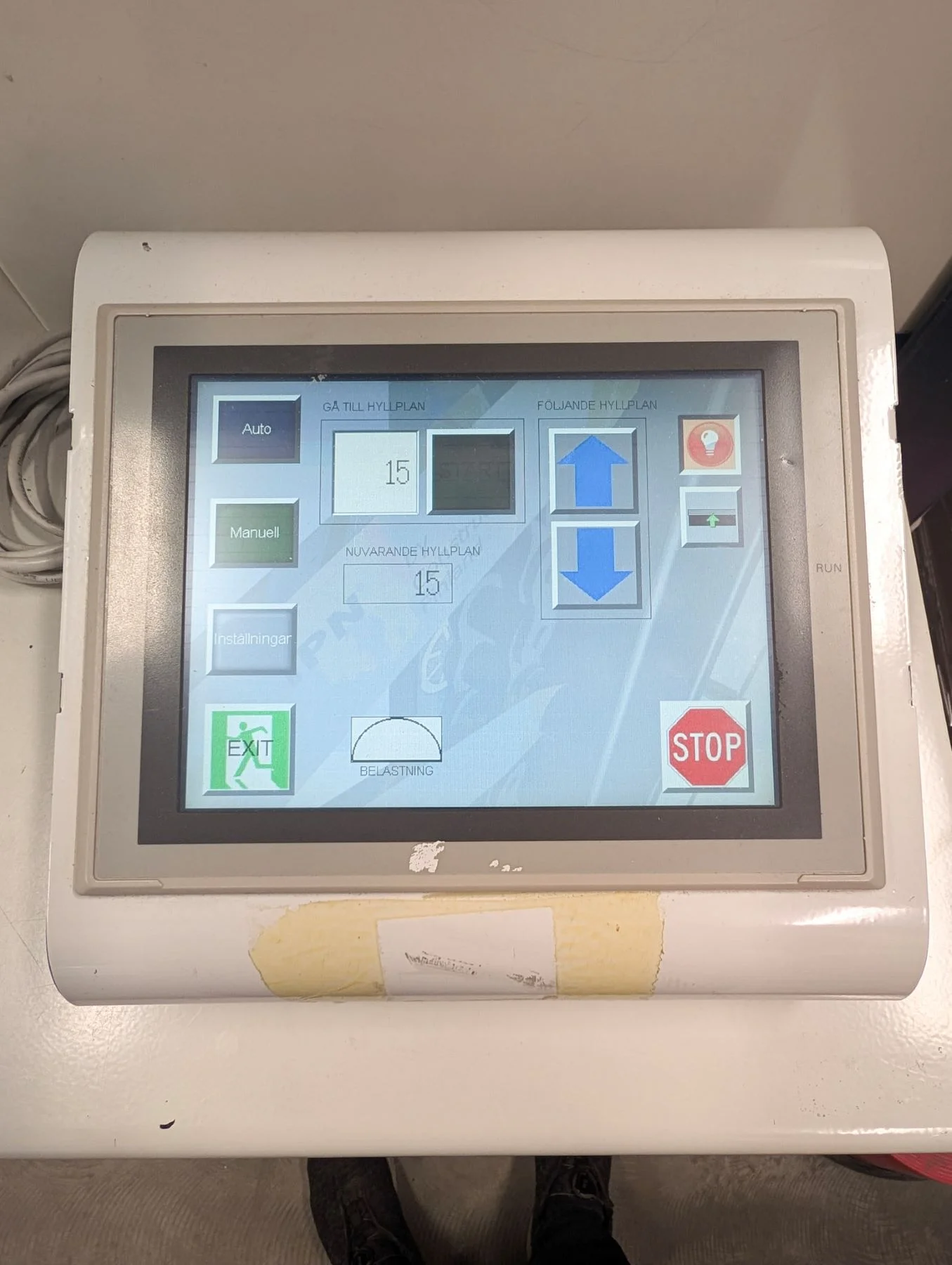

The machines have been upgraded with the PAC100 control system, enabling them to use modern technology that can be integrated with ERP/WPS. The vertical carousels are supported by the manufacturer.
Both machines are equipped with 14 carriers and 20 intermediate shelves each. Of these, 6 carriers have 3 intermediate shelves each, while 8 carriers have 2 intermediate shelves, providing a total of 34 storage shelves.
The shelves are 4 100 mm wide and 520 mm deep, offering a total of 34 storage shelves. This provides a total storage area of 73 m², while the machines occupy only 12.25 m² of floor space.
The boxes for the machines can be purchased separately.
The machines can be installed starting from August/September 2025.
Shipping and installation are not included.
The machines have been upgraded with the PAC100 control system, enabling them to use modern technology that can be integrated with ERP/WPS. The vertical carousels are supported by the manufacturer.
Both machines are equipped with 14 carriers and 20 intermediate shelves each. Of these, 6 carriers have 3 intermediate shelves each, while 8 carriers have 2 intermediate shelves, providing a total of 34 storage shelves.
The shelves are 4 100 mm wide and 520 mm deep, offering a total of 34 storage shelves. This provides a total storage area of 73 m², while the machines occupy only 12.25 m² of floor space.
The boxes for the machines can be purchased separately.
The machines can be installed starting from August/September 2025.
Shipping and installation are not included.
Overview
Year:
2011 & 2013
Dimensions:
Height: 3.84 m / Width: 4.9 m / Depth: 2.5 m
Technical information
Manufacturer:
Constructor
Manufacturing year:
1 unit from 2011 & 1 unit from 2013
Model:
IPN 8*2"-520-329-4100-3840
Height vertical carousel / carrier:
3 840 mm / Free height on the carrier approximately 329 mm.
Width vertical carousel / carrier:
4 900 mm / 4 100 mm
Depth vertical carousel / carrier:
2 500 mm / 520 mm
Number of carriers / shelves:
14 carriers / 20 shelves
35 storable shelves in total
35 storable shelves in total
Maximum weight per tray:
350 kg
Electronics:
400 V, 8,5 A
Price:
22 600 EUR / unit
Financing:
Leasing from 420 EUR / month
Contract period 60 months.
Normal credit checks are required
